Cue Recall Manager
Recall cues to change context on remote software or hardaware, with immediate Prev/Next navigation or with rotary encoder to jump to a specific cue.
What It Does On Stage
aSynth2OSC is not just a converter. It is a performance bridge: tactile modular control in front, deterministic OSC workflows in the back. Every modulation can become a color, an intensity curve, a video state, or a spatial path position.
Modular Dynamics To OSC
Convert 4 CV channels to normalized float values, with adjustable period and hysteresis, ideal for smooth automation lanes in media engines.
Two-Way Feedback
Receive incoming OSC commands to show confirmations directly to the performer OLED screen. You can also set the CV Analog output and flash buttons LEDs if needed.
Creative Use Cases
Typical integrations in contemporary live setups where music, visual systems, and stage automation are tightly linked.
1) Control Snapshot Recall Across Systems
Use the encoder to select cue 128, validate, and instantly recall matching states and mappings in your lighting console, video server, and audio engine.
Cue 128 -> /cue 128 -> lights preset + media scene + FX routing
2) Animate Sounds, Lights And Video With CV
Patch an LFO or envelope into CV 1 jack input and map normalized OSC floats to beam spread, strobe depth, shader intensity, or playback speed.
/cv/1 0.00..1.00 -> DMX intensity curve / video shader gain
3) Move Sound Objects In Spatial Audio
Drive object (X,Y) coordinates from CV joystick pairs and trigger snapshots for trajectory changes, making movement feel physically performed instead of programmed.
CV1 -> X axis, CV2 -> Y axis, Trig1 -> start animation
4) Send hardware sequencer's MIDI from stage to FOH
Forward MIDI PC #7 sequencer song pointer into OSC pathways so context stay in sync with external show controllers and render engines by recalling their snapshots.
/program 1 7 -> timeline jump / scene alignment to program 7
Built For Real-World Operation
Operational Strengths
- Instant boot and send OSC, persistent settings.
- RJ45 wired network interface. Static or DHCP addressing with editable subnet bytes.
- On-device inputs monitoring with activity and levels indicators.
- Simple ping/pong and messenger commands for remote diagnostics.
User Manual (Quick Reference)
A practical end-user workflow for powering on, recalling cues in performance mode, entering Settings mode, and safely returning to performance mode.
1) How To Start
- Power the module and wait for splash screen completion.
- Confirm you are in normal mode (center label shows Recl).
- Check network reachability from your show computer.
- Send a
/pingto verify OSC round-trip with/pong.
2) Normal Mode: Show Control
- Press Prev/Next to recall cues immediately (000..999 wrap).
- Turn encoder to prepare a pending cue (blinking value).
- Short press encoder to confirm and send the cue.
- If not confirmed in 5 seconds, pending cue is canceled.
- Short press with no pending edit resends current cue.
3) Settings Mode: Menu Navigation
- Long press encoder 2 seconds to enter menu mode.
- Use Prev/Next to move through menu items.
- Turn encoder to change selected value.
- Short press encoder resets current item to default. (see table below)
- Long press encoder 2 seconds to exit back to Show Control mode.
Hardware, UI & Connections
14 HP Eurorack standard module. Powered by +12V, -12V from the Eurorack standard bus or 5V USB dedicated power supply (estimated 250mA).
Display and controls

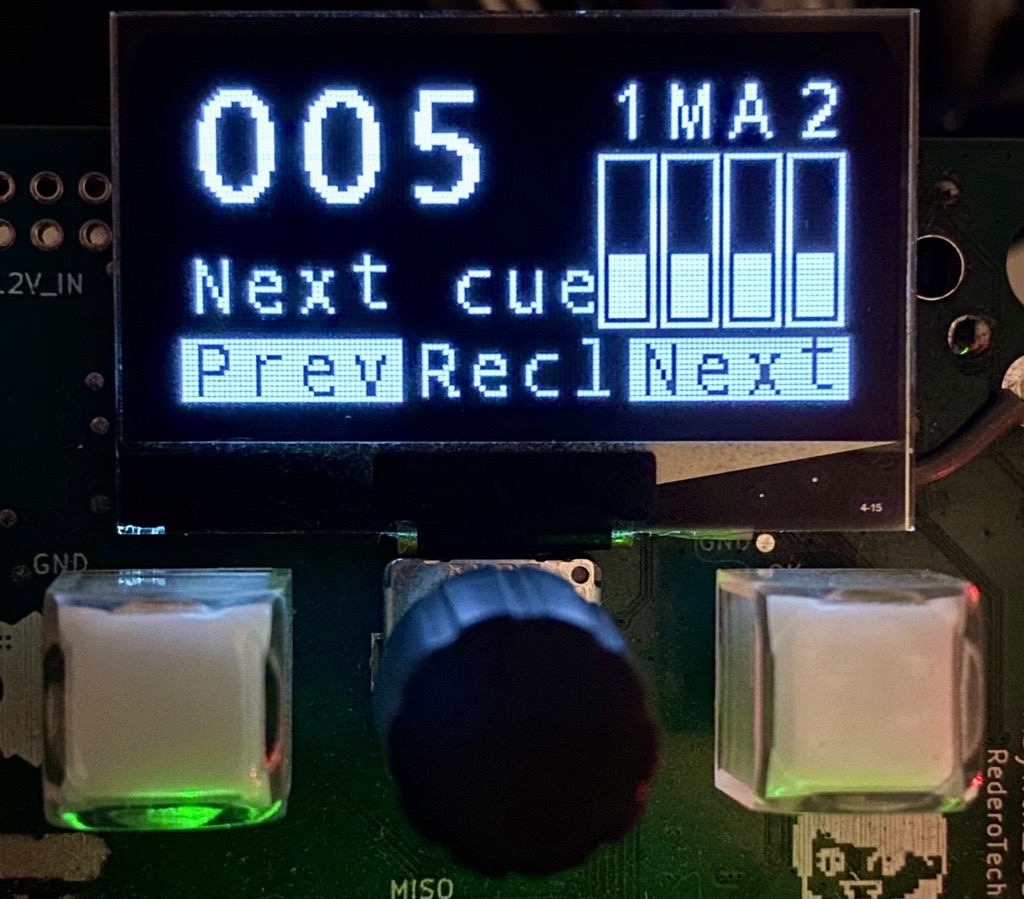

The screen shows live performance data and navigation:
- Cue Number (top left): 3-digit value (000–999) is the current cue number. Blinks when recall is pending a confirmation by pushing the encoder. When in menu mode, edit the setting value
- Activity Meters (top right): "1 M A 2" row displays blinking indicators for Trigger 1, Midi in activity, Analog out, Trigger 2 and four live CV level bars
- Messenger Line (center left): Shows transient messages received from OSC /msg. When in Menu mode, displays the current setting name and value
- Button Labels (botom): "Prev", "Recl" (center mode indicator, rotary encoder push), and "Next" align with the physical buttons below the display
- Rotary Encoder (center below screen): Navigate cues (turn), confirm selections (short press), or switch modes (2-second hold)
- Prev/Next Buttons: Physical pushbuttons below the display for immediate cue recall (Prev/Next) or navigation in Menu mode
Connections to other modules

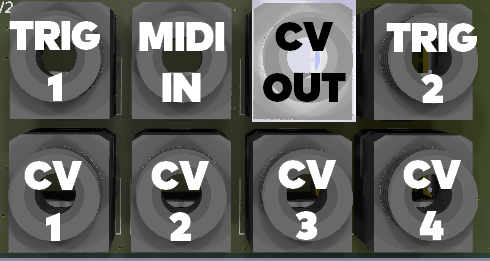

Eight 1/8" TRS jacks provide all signal I/O pathways:
- Trigger 1 & Trigger 2 (top left/right): Gate and trigger inputs for clock pulses, envelopes, or digital state changes. And, yes, they have their own dedicated buttons also for manual finger triggering
- MIDI IN (top center-left): MIDI jack Type A connector for Note, CC, Program Change, Pitch Bend, transport, Song Position, and MTC conversion to OSC
- CV OUT (top center-right): Analog Output jack for sending to external modules or for feedback pathways
- CV 1, CV 2, CV 3, CV 4 (bottom row): Four analog control voltage inputs with 16-bit precision, selectable range (±5V or ±12V), polling at configurable intervals (10–200 ms)
Default Settings And OSC Commands
Factory defaults and key OSC paths most often used during setup, diagnostics, and live operation.
| Setting | Default |
|---|---|
| IP Mode | Static |
| Device IP | 192.168.1.42 |
| Netmask | /24 (255.255.255.0) |
| Target IP | 192.168.1.142 |
| OSC TX Port | 42010 |
| OSC RX Port | 42011 |
| Path | Arguments | Purpose |
|---|---|---|
| /ping | none | Connectivity test, replies with /pong |
| /msg | string | Display message on OLED status line |
| /cue | int | Remote change the current cue number |
| /aout | float 0.0..1.0 | Set normalized DAC output value |
| /idle | none or bool | Blink Next LED until Next button is pressed |
| Path | Arguments | Purpose |
|---|---|---|
| /cv/1..4 | float 0.0..1.0 | Normalized CV input values |
| /trig/1..2 | bool F or T | Trigger state values |
| /cue | int | Current recalled cue value |
| /pong | none | Reply to incoming /ping |
| /note | int channel, int pitch, int velocity | Note On and Note Off (velocity 0) |
| /control | int channel, int controller, int value | MIDI Control Change |
| /program | int channel, int program | MIDI Program Change |
| /pitch | int channel, int value | Pitch Bend value 0..16383 (8192 center) |
| /clock | none | MIDI timing clock pulse |
| /start | none | MIDI start and MMC play mapping |
| /stop | none | MIDI stop and MMC stop/pause mapping |
| /continue | none | MIDI continue playback |
| /songpos | int value | Song Position Pointer value |
| /mtc | int hour, int minute, int second, int frame, int fps | MTC full frame |
| /mtc_qf | int piece, int value | MTC quarter frame piece/value |
Incoming OSC parser accepts single messages and bundles. For MIDI forwarding, note on/off follows the MIDI Note menu setting, while Control Change, Program Change, Pitch Bend, transport, Song Position, and MTC remain active.
Settings Menu Reference
Enter menu mode by holding the rotary encoder for 2 seconds (center label switches from Recl to Menu).
Use Prev/Next to navigate items, turn the encoder to change a value, short press to reset to default, long press 2 seconds to exit.
All changes are saved immediately to persistent storage. Network settings take effect only when exiting the menu.
| # | Menu Label | Default | Range / Values | Description |
|---|---|---|---|---|
| 1 | CV period (ms) | 20 ms | 10 – 200 ms, step 5 | CV sampling interval. Lower = more responsive, more OSC traffic. |
| 2 | CV Hysteresis (mV) | ~33 mV | ~17 – 165 mV, step ~17 | Minimum CV change required before a new OSC float is sent. Reduces redundant messages on stable signals. |
| 3 | IP Mode | 0 (Static) | 0 = Static, 1 = DHCP+LL, 2 = DHCP+FB | Ethernet address assignment mode. |
| 4 | Target IP | 142 | 0 – 255 | Last octet of the OSC target (receiver) IP. Shared prefix set by IP bytes 1–3. Effective default: 192.168.1.142. |
| 5 | Target Port | 10 → 42010 | 0 – 999 (offset from 42000) | OSC transmit port. Effective port = 42000 + offset. |
| 6 | Device IP | 42 | 0 – 255 | Last octet of the board IP address. Effective default: 192.168.1.42. |
| 7 | Device Port | 11 → 42011 | 0 – 999 (offset from 42000) | OSC receive port. Effective port = 42000 + offset. |
| 8 | CIDR Mask | 24 (/24) | 0 – 32 | Subnet mask length. /24 = 255.255.255.0. |
| 9 | IP byte 1 | 192 | 0 – 255 | First byte of the shared subnet prefix (applies to both device and target IPs). |
| 10 | IP byte 2 | 168 | 0 – 255 | Second byte of the shared subnet prefix. |
| 11 | IP byte 3 | 1 | 0 – 255 | Third byte of the shared subnet prefix. |
| 12 | MIDI Note (0:ignore 1:thru) | 0 (ignore) | 0 = ignore, 1 = thru | Whether incoming MIDI Note On/Off messages are forwarded to OSC. Other MIDI types (CC, Program, Pitch Bend, transport, Song Position, MTC) are always forwarded regardless of this setting. |
